Looking Glass 32"

This is the setup guide for the Looking Glass 32". If you need more advanced support or need assistance with setting up your Looking Glass 32" please email us at [email protected]

Hardware
Follow the Hardware Setup Guide that came with your Looking Glass 32". If it can't be found, you can download a copy here:
Looking Glass 32 Setup Guide.pdf
441KB
PDF
Looking Glass 32" Hardware Setup Guide
Software
Download and install Looking Glass Bridge to start working with holograms.
Looking Glass Bridge, Looking Glass Studio, and some demo applications are already installed and ready to use on computers purchased directly from Looking Glass Factory.
Display Settings & Configuration
When setting up your Looking Glass 32" display alongside your secondary monitor (recommended) to use at the UI screen, ensure the following:
The Looking Glass 65" and secondary monitor should be extended, not mirrored.
The Looking Glass 65" should be scaled at 100%
The secondary monitor should be set as your "primary display"
This setup will allow for you to seamlessly control your applications and content from the secondary display with the holographic content running on your Looking Glass 32".
Leap Motion Setup
Some applications are controllable via the Leap Motion hand tracking hardware (included). To use these features, please download and install the V5 (Gemini) version of the Desktop SDK.
🤏🏼Ultraleap software is already installed on computers purchased directly from Looking Glass Factory.
Once you've got Leap Motion Sensor plugged in and the Ultraleap Gemini tracking installed, launch the Ultraleap sensor setup & load the Ultraleap Tracking Software. This will allow you to use your Leap Motion Sensor with any compatible apps you have installed.
Test your Setup
This simple test can be run to ensure that hardware is connected, and software is installed and configured:
When the above button is pressed, your Looking Glass 32" should show a 3D image of the Looking Glass Logo. To close this image, move your mouse over and click anywhere on the image.
If it appears with diagonal lines, there is an error loading the calibration data. Please retry the setup steps above to ensure it is properly configured, double check that all cables are plugged in and that your monitor settings are correct.
Featured Applications & Holograms
The following applications demonstrate the features / capabilities of the Looking Glass 32" Display and are preinstalled on the Looking Glass 32" PC.
🛩️ Jet Engine
A Video Showcasing the Jet Engine Demo
🤏🏼 Leap Motion Enabled
​Download Jet Engine​
Jet Engine is a CAD presentation of complex 3D models, gesture control/explode to show complex structures to show internally and to clients.
Gesture Controls:
Left Hand - X-ray through model
Right-Hand - Rotate the model
Both-Hands Together - Explode View

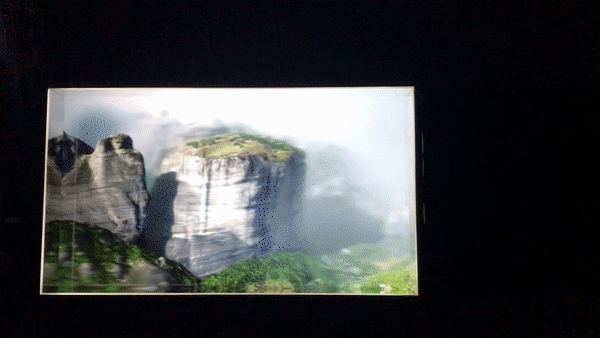

🏔️ Landscape Fly Through
​Download Landscape Flythrough​
space bar to pause / enable orbit
f toggles fog on / off
🔽 arrow to reset light
◀️▶️ arrows to move shadows
alt + F4 to escape
Orbit controls with 3D cursor using a mouse
Double click to focus
Mouse wheel to zoom in and out
Middle mouse wheel drag to translate
Click and rotate to rotate model

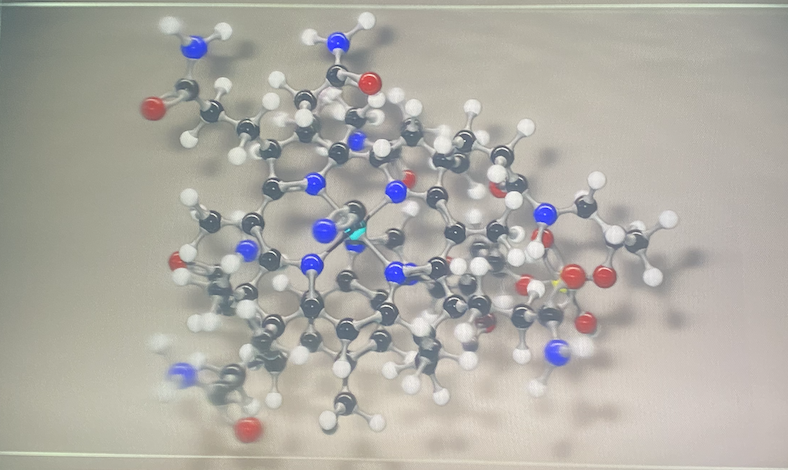

Molecule Viewer
​Download Molecule Viewer​
Controls
Orbit controls with 3D cursor using a mouse
Double click to focus
Mouse wheel to zoom in and out
Middle mouse wheel drag to translate
Click and rotate to rotate model
R to reset view Space or arrow left/right to toggle
​
Holograms

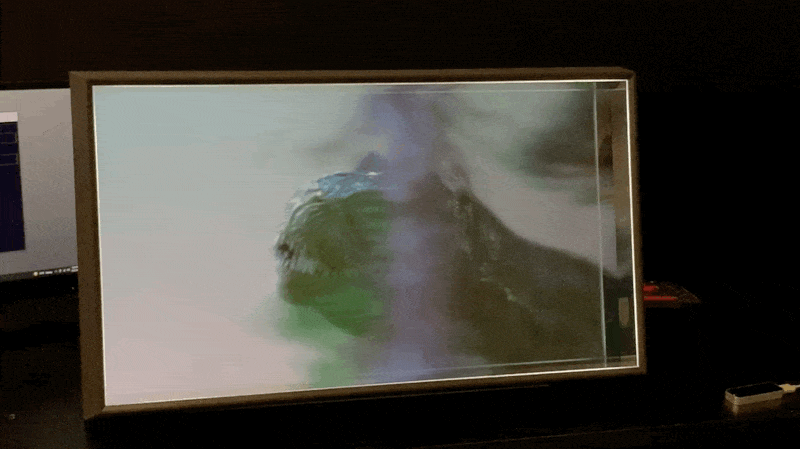

Trex video w/sound by Jorge Hernandez
​
​
trex-8k-200m-nv_qs5x9.mp4
79MB
Binary
Fantasy KitKat by Mar
​
​
3MB
Missy with Lipstick
​
​
11MB
Shawn & his Holographic Skateboard
​
​
12MB
Albert and his Etch-a-Sketch

​
albert-etchasketch-july2021-8K-qs7x12 (2).jpg
9MB
Bowl of Oranges
​
​
17MB
Flower Macro Photography
​
​
3MB
Scar Jo
This Hologram was created in Maya by Jaye Howse! That's right, it's not a photo! 🤯
​
​
​
8MB
Bond, James Bond
Peer into the world of 007 with this fantastic CGI replica of James Bond's weapon by Jay Howse
​
​
13MB

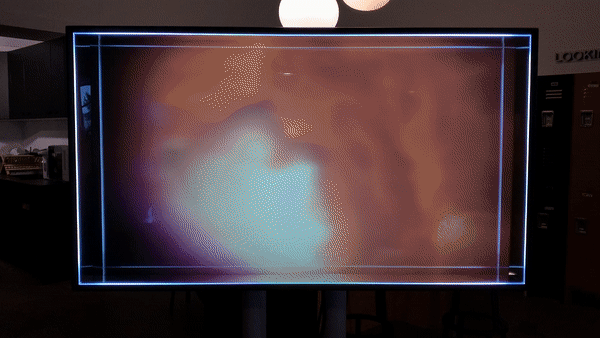

Protean clouds by Nimitz
​
​
​Link to Download​
Common Troubleshooting Issues
Issue
Solution
If your PC is not switching on when connected to the Looking Glass 32" Display
Note that when you setup + switch on the PC, avoid having all peripherals connected at once. Only have the secondary screen connected. Then, after setup, you can connect all the other accessories. This is to prevent the PC from drawing too much power at once.
If you notice that your demos seem to be running to the left side of the display and there is something wrong with how they look
Reset the Looking Glass display with the on & off with the side power button.
If you notice that some media in Looking Glass Studio is running at a slower frame rate
This could be for one of two reasons. The first is to ensure that you have Vertical Sync enabled ->
1.Click the Start button or Windows icon
2.Type NVIDIA control panel into the search bar
3.Press Enter on your keyboard
4.Click Manage 3D settings
5.Under I would like to use the following 3D settings, scroll down until you see Vertical sync
6.Select Vertical sync to choose Force on from the drop-down menu
Second, ensure that the graphics card is targeting all the applications that you've installed including the web browser you're using (we recommend Chrome). For a detailed breakdown of how to set this for your PC, follow this guide here.
If USB-C ports on the back of the 32" PC aren't functioning properly.
Install the latest chipset drivers for the intel compute element. This only applies to the 32" PC purchased from Looking Glass Factory.
If the Azure Kinect is not switching on
Re-connect all the cables and make sure that the Azure Kinect USB-C cable is connected to a USB 3.0 port (these are usually blue).
​
If that doesn't work, right click the icon after downloading and run Depth Recorder as System Administrator

Issue	Solution
If your PC is not switching on when connected to the Looking Glass 32" Display	Note that when you setup + switch on the PC, avoid having all peripherals connected at once. Only have the secondary screen connected. Then, after setup, you can connect all the other accessories. This is to prevent the PC from drawing too much power at once.
If you notice that your demos seem to be running to the left side of the display and there is something wrong with how they look	Reset the Looking Glass display with the on & off with the side power button.
If you notice that some media in Looking Glass Studio is running at a slower frame rate	This could be for one of two reasons. The first is to ensure that you have Vertical Sync enabled -> 1. Click the Start button or Windows icon 2. Type NVIDIA control panel into the search bar 3. Press Enter on your keyboard 4. Click Manage 3D settings 5. Under I would like to use the following 3D settings, scroll down until you see Vertical sync 6. Select Vertical sync to choose Force on from the drop-down menu Second, ensure that the graphics card is targeting all the applications that you've installed including the web browser you're using (we recommend Chrome). For a detailed breakdown of how to set this for your PC, follow this guide here.
If USB-C ports on the back of the 32" PC aren't functioning properly.	Install the latest chipset drivers for the intel compute element. This only applies to the 32" PC purchased from Looking Glass Factory.
If the Azure Kinect is not switching on	Re-connect all the cables and make sure that the Azure Kinect USB-C cable is connected to a USB 3.0 port (these are usually blue). If that doesn't work, right click the icon after downloading and run Depth Recorder as System Administrator
